Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine

  • Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine
  • Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine
  • Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine
  • Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine
Luogo di origine Cina
Marca DIXUN
Certificazione CE & ISO 9001:2015
Numero di modello DX-25T
Quantità di ordine minimo un set
Imballaggi particolari I pezzi di ricambio e il quadro elettrico verranno caricati in una scatola di legno. La macchina pri
Tempi di consegna 30 giorni lavorativi
Capacità di alimentazione 5 set al mese
Dettagli
Nome del prodotto BTO-22 BTO-25 BTO-30 Macchina automatica per filo spinato Tensione nominale 220v / 380v / 440v
Utilizzo recinzione di filo di rasoio Velocità di produzione 220-280 m/h
Motore dello svolgitore 1,5 kW Motore della punzonatrice 4 kW
Motore dell'avvolgitore del rasoio 1,5 kW Peso della punzonatrice 3.9 T
Peso dello svolgitore 500kg Velocità di produzione della macchina avvolgitrice 150kg/h
Evidenziare

4kw razor barbed wire machine

,

BTO-30 barbed wire machine

,

5 strips razor wire machine
Lasciate un messaggio
Descrizione di prodotto

Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine





Introduction of Razor Barbed Wire Machine



Razor barbed wire machine is specially used to manufacture razor barbed wire.It mainly consists of punching razor strip machine,coiling wire mesh and mould.the punching razor strip machine is used as punching the outside razor strip of razor wire.the coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire. The mould decide the razor length,width the space.



This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.



Features of Razor Barbed Wire Machine



1. Automatic decoiler holding max. 2 tonssteel sheet; its motormade of copper leads.

2. Step motor and converter on Yangli punch machine tofeed steel sheet. In this way, feeding speed is up to 100 times/minute.

3. Razor coiling machine adopts inverter to adjust working speed,more precise, long life.

4. PLC control to make operation easy andmachine run stable.



Advantages of Razor Barbed Wire Machine



1. High speed punching machine
2. Automatic lubricating system to save operation time and avoid some parts worn because of short of lubrication oil.
3. Step or servo motor feeding material to make material feeding more precise.
4. PLC control to make operation easy and machine run stable.
5. Some spare parts for free



Technical Parameters of Razor Barbed Wire Machine



Model DX-25T DX-63T
Number of punch strips BTO-30 5 strips 9 strips
Production speed 220-280m/h 220-280m/h
Motor power 4.0kw 5.5kw
Voltage 220V,380V,415V,440V 220V,380V,415V,440V
Machine weight 3.1T 3.9T
Machine dimension 1800*1600*1980mm 1800*1600*2650mm
Stepping motor feeding Yes Yes



Technical Parameters of Coiling Machine



Motor power 3.0 kw
Weight 400kg
Dimension  1000*550*1000mm
Production capacity 200kg/h
Rotate speed 0-260r/min
Type of control Inverter



Applications of Razor Barbed Wire



Razor barbed wire is mainly used for safe isolation of facilities,communications stations,power transformer substation,and territorial prison,dump site,community protection, school,factories and farms.

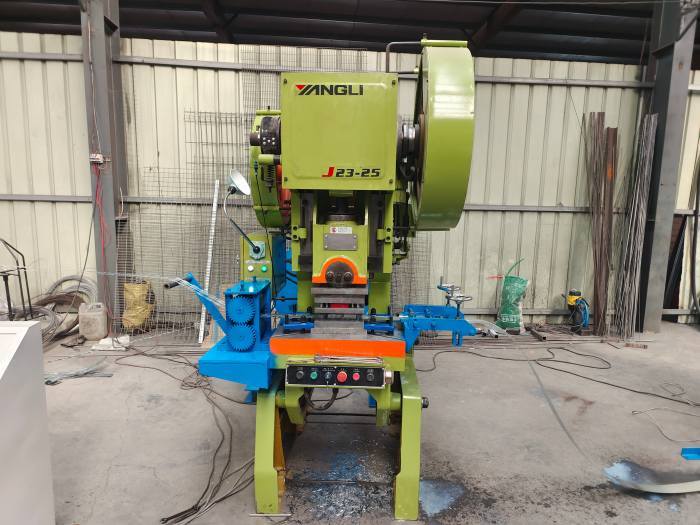

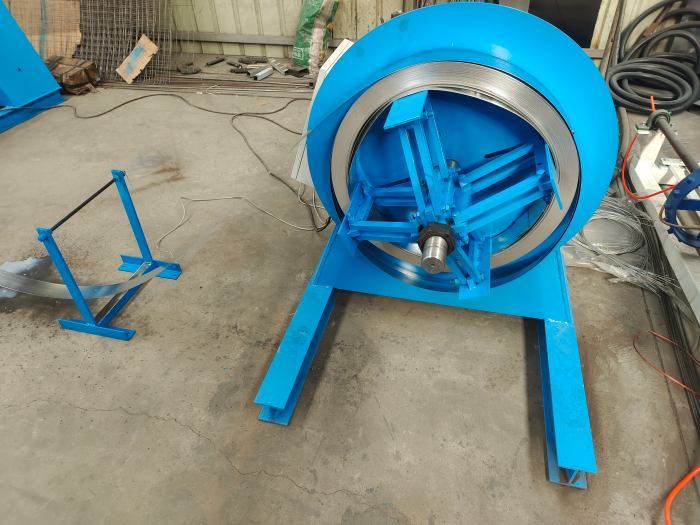

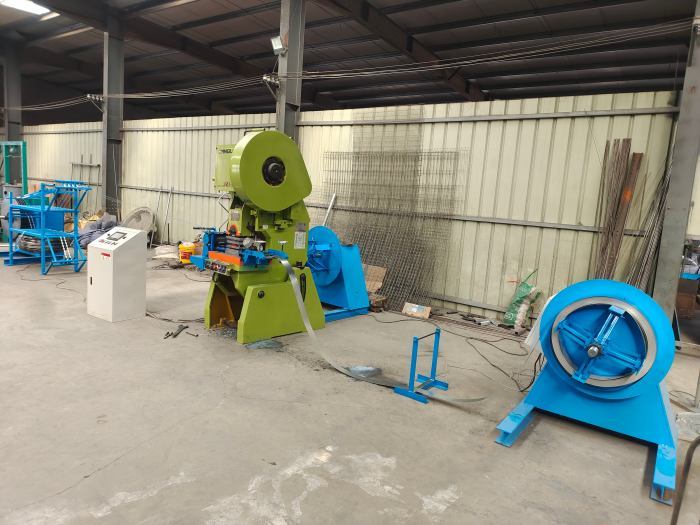

Photos of Razor Barbed Wire Machine



Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine 0

Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine 1

Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine 2

Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine 3

Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine 4
