Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine

  • Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine
  • Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine
  • Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine
  • Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine
Luogo di origine Cina
Marca DIXUN
Certificazione CE & ISO 9001:2015
Numero di modello DX-63T
Quantità di ordine minimo un set
Imballaggi particolari I pezzi di ricambio e il quadro elettrico verranno caricati in una scatola di legno. La macchina pri
Tempi di consegna 30 giorni lavorativi
Capacità di alimentazione 5 set al mese
Dettagli
Nome del prodotto Macchina per filo spinato a fisarmonica Caricare il peso in acciaio dello svolgitore 2T
Motore dello svolgitore 1,5 kW Motore della punzonatrice 5,5 kW
Peso della punzonatrice 3.9 T Larghezza della bobina di acciaio 154 mm
Spessore della bobina d'acciaio 0,5 mm o 0,4 mm Numero di strisce 11 strisce
Peso totale 9t Lavoro richiesto Una persona
Evidenziare

concertina razor barbed wire machine

,

BTO-22 razor wire machine

,

11 strips barbed wire machine
Lasciate un messaggio
Descrizione di prodotto

Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine





Introduction of Concertina Razor Barbed Wire Machine



Concertina Razor Wire with Various Blade Types Making Machine,.The razor barbed wire machine, also known as the razor barbed wire machine is a special machine for producing razor barbed wire.



Advantages of Concertina Razor Barbed Wire Machine



1. High speed punching machine. high efficiency and easy operation.
2. Automatic lubricating system to save operation time and avoid some parts worn because of short of lubrication oil.
3. Step motor feeding material to make material feeding more precise.
4. PLC control to make operation easy and machine run stable.
5. Some spare parts for free



Working principle of Concertina Razor Barbed Wire Machine


Razor barbed wire machine consists of razor strip making machine and coil machine. Razor strip making machine cuts steel strip into different razor shapes according to different moulds.


Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.



Technical Parameters of Concertina Razor Barbed Wire Machine



  Punch machine from Yangli brand Best quality Coiling machine nverter controlled
Production speed 220-280m/h 800kg at 8 hours
Raw material  Galvanized steel sheet or Stainless steel Galvanized wire
Thickness 0.5mm or 0.4mm 2.5mm
Motor  5.5kw 1.5kw
Voltage 220V,380V,415V,440V 220V,380V,415V,440V
Weight 3.9T 400kg
Dimension 1800x1600x2650mm 1000x550x1000mm
Punch pressure 63T
Feeding material By stepping motor



Applications of Concertina Razor Barbed Wire



Barbed wire with blades, also known as blade barbed wire or blade barrier mesh, is a new type of security fencing. It features excellent qualities such as aesthetic appearance, cost-effectiveness, high effectiveness in deterrence, and easy installation. As a result, it is widely used in industrial and mining enterprises, gardens and residential complexes, border outposts, prisons, detention centers, government buildings, and other national security facilities across many countries.



Photos of Conceretina Razor Barbed Wire Machine

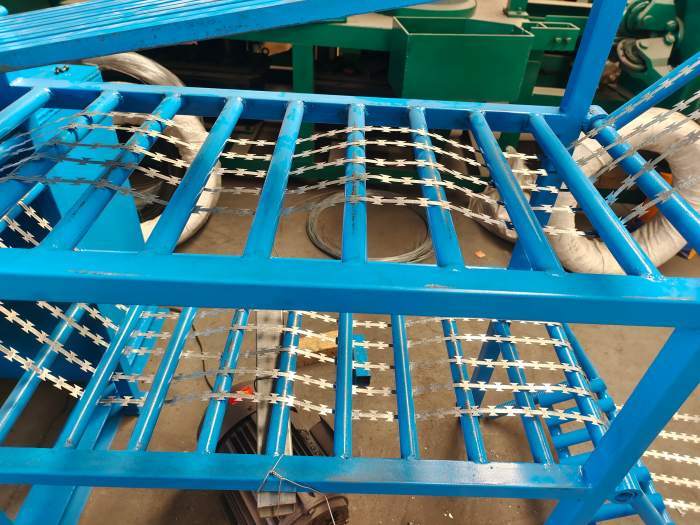

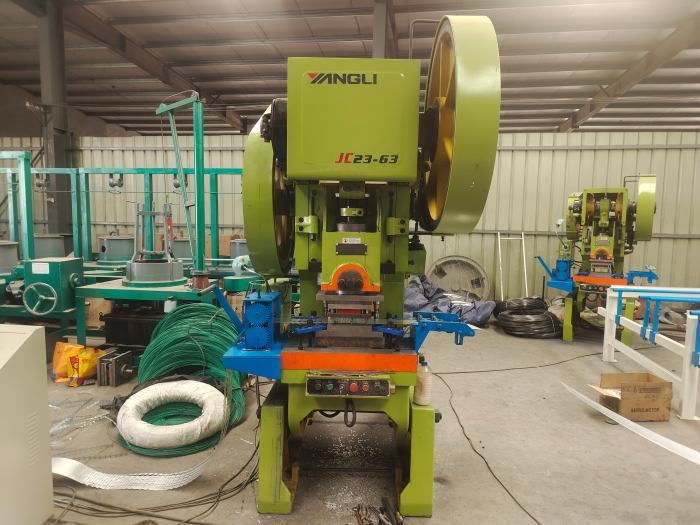

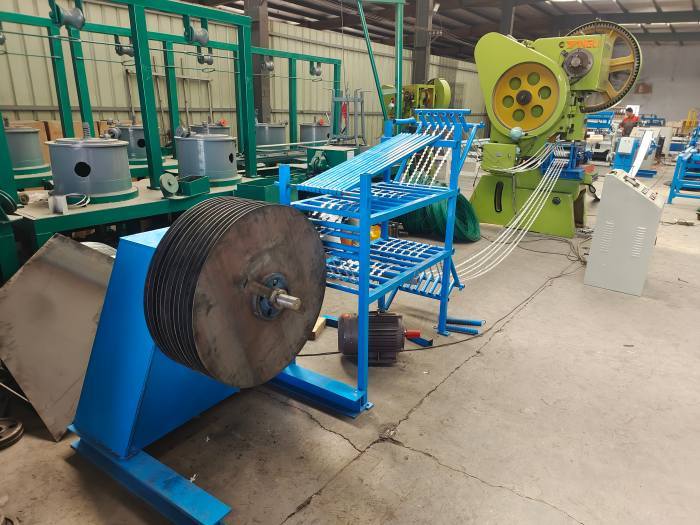

Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine 0

Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine 1

Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine 2

Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine 3

Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine 4
