punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine

  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
Luogo di origine Cina
Marca DIXUN
Certificazione CE & ISO 9001:2015
Numero di modello DX-63T
Quantità di ordine minimo un set
Imballaggi particolari I pezzi di ricambio e il quadro elettrico verranno caricati in una scatola di legno. La macchina pri
Tempi di consegna 30 giorni lavorativi
Capacità di alimentazione 5 set al mese
Dettagli
Applicazione fare filo spinato tagliente Nome del prodotto Fabbrica che vende macchina automatica per la produzione di filo spinato
Tipo di rasoio BTOCBT Motore della punzonatrice 5,5 kW
Peso del carico dell'aspo 2 tonnellate macchina della perforazione Rasoio da 11 strisce
Motore dello svolgitore 1,5 kW Spessore della piastra della bobina zincata 0,4 mm o 0,5 mm
Larghezza della piastra della bobina zincata 154 mm Peso totale 8 t
Evidenziare

63T punch pressure razor wire machine

,

BTO-22 razor wire making machine

,

11 strips barbed wire machine
Lasciate un messaggio
Descrizione di prodotto

Punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine





Introduction of Razor Wire Making Machine



Razor barbed wire machine mainly consists of punching machine and coil machine.

Punching machine cuts steel tapes in different razor shapes with different moulds.

Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.



Features of Razor Wire Making Machine



1. Automatic de-coiler holding max. 2tons steel sheet; its motor made of copper leads.

2. We adopts Chinese No. 1 Press machine, and step motor to feed steel sheet fast and smooth.

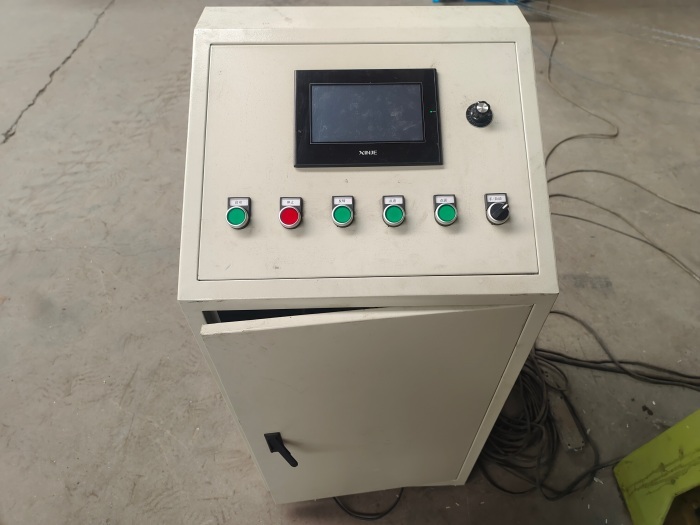

3. Control box with Text screen and PLC control and Delta inverter easily.

4. Punch machine was equipped with Foot/button switch control separately for easy operation.

5. Customized hardened alloy mold ensures little wastage of raw materials; hot-cast mold, one-year life.

6. Lubricant oil device is visible and central process, maintain machine easily, extend machine life.

7. Strong machine body made of cast steel with complex metal working.

8. Razor coiling machine adopts Grid counter to record loops quantity automatically.

9. Razor coiling machine adopts inverter to adjust working speed, more precise, long life.

10. Roller diameter for finished wire can be adjustable widely.

Razor Wire Machine Advantages

1. Automatically complete production line, operator friendly and higher speed.
2. Automatical decoiler holding max. 2tons steel sheet; its motor made of copper leads.
3. Different ton punch press for choice to save your cost.
4. Customized mold saving 20% raw materials.
4. Slitting frame and recoiler to wind up razor tapes rolls tightly.
5. Electro-magnetic motor in coiling machine for smooth speed adjustable.
6. Multifunctional squeezing wheels for strong finished razor wire.

Technical Parameters of Razor Wire Making Machine



Name Motor Rotate speed Control mode Dimension
Punch machine 5.5kw 75-130 r/min frequency  conversion 1800*1600*2550mm
Decoiler  1.5kw 80 r/min automatic 1000*900*1000mm
Collect razor strip machine 3.0kw 0-100 r/min frequency conversion 1000*900*1000mm
Feeding machine 1.5kw   frequency conversion 700*300*300
Coiling machine 3.0kw 0-260 r/min frequency conversion 1000*550*1000mm



Applications of Razor Wire Making Machine



Razor barbed wire is extensively used for security isolation, communication stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.



Photos of Razor Wire Making Machine

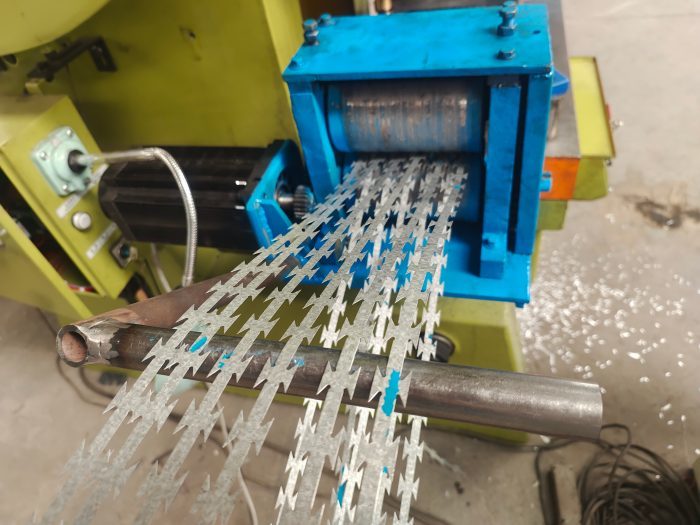

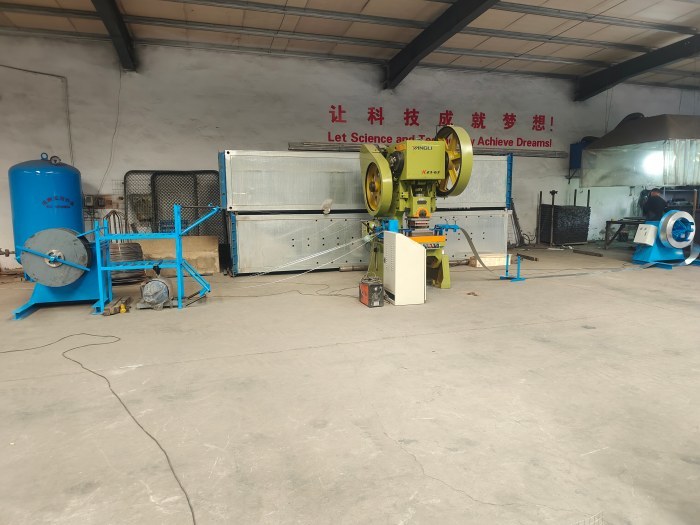

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 0

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 1

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 2

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 3
