Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine

  • Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine
  • Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine
  • Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine
  • Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine
Luogo di origine Cina
Marca DIXUN
Certificazione CE & ISO 9001:2015
Numero di modello DX-2500FA
Quantità di ordine minimo un set
Imballaggi particolari I pezzi di ricambio e il quadro elettrico verranno caricati in una scatola di legno. La macchina pri
Tempi di consegna 30 giorni lavorativi
Capacità di alimentazione 5 set al mese
Dettagli
Nome del prodotto Saldatrice per reti di recinzione materia prima filo zincato o filo a basso tenore di carbonio
Larghezza recinzione Max.2500mm Altezza recinzione da 1530 mm a 2500 mm
Velocità di saldatura 50-75 volte/min Capacità del trasformatore 160kva x 8 pezzi
Tirare il motore a rete Servomotore 1.5KW Spazio longitudinale del cavo 50-200mm
Spazio del cavo trasversale 50-200mm Flessione Piegatura automatica
Capacità produttiva 50-55 pannelli all'ora Consumo energetico 5-6kw/h
Spazio richiesto 30*10 metri Sistema di controllo PLC
Evidenziare

60 Pcs capacity fence mesh welding machine

,

50x200mm mesh size welding machine

,

3.5kw servo motor fence welder
Lasciate un messaggio
Descrizione di prodotto

Capacity 60 pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine





Introduction of Fence Mesh Welding Machine



This fence mesh welding machine is developed and produced by the Chinese technical team and European engineers combined with the use experience of customers. The whole production line is very advanced and each system has been greatly improved.



Features of Fence Mesh Welding Machine



Automatic longitudinal wire feeding unit



1. Longitudinal wire storage device, 1T wires capacity.
2. Servo motor connect line wire feeder by synchronous belt, guarantee feeding accurately.
3. 21 seconds can feed 61 line wires.
4. Servo motor controls line wire pushing.



Automatic cross wire feeding unit



1. Cross wire storage device, 1T wires capacity.
2. Step motor controls cross wire falling.
3. Specially designed cross wire feeder, guarantee cross wire straight when cross wire falling.



Main mesh welding machine



1. AirTAC (Taiwan China) brand air cylinder control welding.

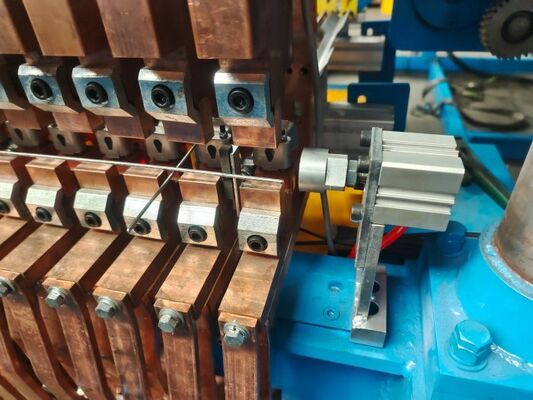

2. Upper electrode base and lower electrode base are integrally cast in copper, water cooling type.
3. Welding electrode: 30*30*30mm, 6 sides use.
4. Cast type water cooling welding transformers.



Mesh pulling car



1. No.1 mesh pulling car control mesh pulling.
2. No.2 mesh pulling car control mesh feeding to automatic bending machine.
3. Servo motor connect mesh pulling car by synchronous belt, guarantee pulling accurately.



Automatic bending machine


CNC-controlled bending, adjustable bending angle and depth.
Deflection compensation worktable, reducing manual adjustment time and improving consistency.

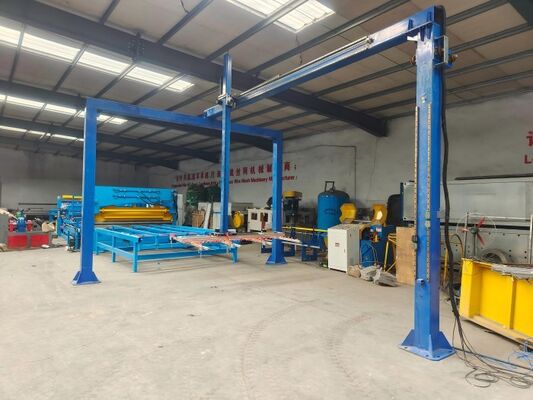

Mesh stacking unit



1. After finish welding, mesh stacking unit will catch and lift the mesh and stack on cart automatically.
2. Servo motor control the mesh lifting.
3. Servo motor control the mesh moving out.



Advantages of Fence Mesh Welding Machine



1. The mesh length (fence height) can be adjusted arbitrarily 75-2500 mm.
2. Vibration device is added to the cross wire feeding system to prevent wire winding.
3. The line wire and the cross wire are precise positioning, mesh panel is flat ,mesh hole is standard.
4. Cross wire spacing adjusted through the touch screen, different mesh sizes can set in the same mesh.
5. The upper and lower dies of the bending machine move at the same time to save time.
6. We can easily adjust the welding current when we need to weld different wire diameters.
7. The line wire feeding system has added a hopper, which can place 1 ton of wire.
8. We can set the output and stop the machine automatically after the mesh production finished.
9. Wire feeding,mesh welding, mesh bending, mesh stacking running together.High production efficiency.
10. Robot mesh stacking system can accurately and quickly place the mesh, saving labor cost.



Technical Parameters of Fence Mesh Welding Machine



Model DX-2500FA DX-3000FA
Longitudinal wire diameter 3-5mm 3-5mm
Cross wire diameter 3-5mm 3-5mm
Longitudinal wire space 50,100,150,200mm 50,100,150,200mm
Cross wire space 50,100,150,200,250mm 50,100,150,200,250mm
Fence width Max. 2500mm Max. 3000mm
Fence height 1000-3000mm 1000-3000mm
Welding electrode 51pcs 61pcs
Welding speed 0-65 rows/min 0-65 rows/min
Welding transformer 160kva*9pcs 160kva*10pcs
Production capacity 110 pcs per hour 110 pcs per hour
Pulling mesh servo motor 1.5kw  1.5kw
Machine weight 12 tons 12.9 tons
Machine dimension 24*6.5*2.1m 24*7.2*2.1m
Power supply 200 kva 200 kva



Application of Fence Mesh



Fence mesh is mainly used in feeding chickens, ducks, geese, rabbits, zoo fence, machinery and equipment protection, highway guardrail, sports fence, the road green belt protection, storage, security and reinforcement materials, fencing of sports field, parks.



Photos of Fence Mesh Welding Machine

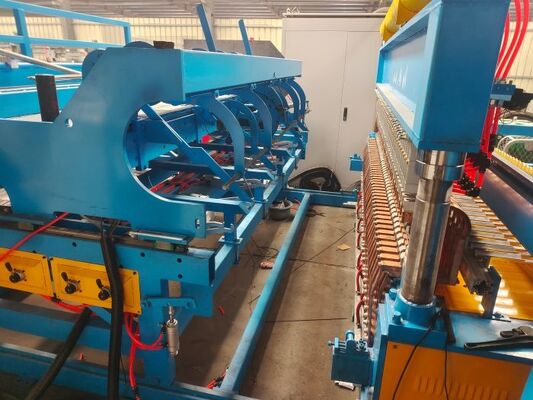

Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine 0

Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine 1

Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine 2

Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine 3

Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine 4

Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine 5
