Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine

  • Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine
  • Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine
  • Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine
Luogo di origine Cina
Marca DIXUN
Certificazione CE & ISO 9001:2015
Numero di modello DX-HS3-6
Quantità di ordine minimo un set
Imballaggi particolari I pezzi di ricambio e il quadro elettrico verranno caricati in una scatola di legno. La macchina pri
Tempi di consegna 30 giorni lavorativi
Capacità di alimentazione 5 set al mese
Dettagli
Nome del prodotto Macchina per raddrizzare e tagliare fili Motore per raddrizzare il filo 7,5 kW
Motore di taglio del filo 3,0 kW Velocità di produzione 100-130 metri al minuto
Peso della macchina 2.4 T Dimensione della macchina 7,5*1,1*1,2 m
Tagliare la lunghezza del filo 1-6 metri Taglio dell'errore 1 mm
Caricare il peso del filo del rack di alimentazione del tipo a piastra rotante Fili 2T Spazio richiesto 10*3m
Evidenziare

3-6mm steel wire straightening machine

,

130m/min wire cutting machine

,

industrial steel wire straightener cutter
Lasciate un messaggio
Descrizione di prodotto

Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine





Steel Wire Straightening And Cutting Machine Introduction



Compared with the ordinary steel wire straightening and cutting machine, the structure of high speed steel wire straightening and cutting machine is more reasonable, and the style also has a new concept, mainly because of a dynamic factor. High power with excellent machinery improves the output and quality of products.High speed steel wire straightening and cutting machine, whether it is gear, straightening wheel, pressing wheel, cutter, casting or other parts, should be more excellent in raw materials and more prominent in manufacturing accuracy.



Features of Steel Wire Straightening And Cutting Machine



1. This machine mainly consists of Rotary plate type feeding rack,Protection frame,Main machine, Store wire frame,Control cabinet and Control cabinet.

2. The machine structure is rational, it is stable and reliable, simple operation, high automation and good performance.

3. The cut length and wire diameter can be adjusted according to your requirement.

4. This machine only needs one worker to insert the wire into the straightening assembly, then the machine can straighten and cut wires automatically.

5. The straightening moulds are alloy material, can be used long time.

6. Straightening speed of 130 m/min, usually in 120 m/min work, straightening short steel bar below 2 m in low and medium speed work.

7. High shearing accuracy, cutting length error ±1mm.

8. High straightness, straightening steel straightness is less than or equal to 2 mm/m.

9. Suitable for straightening shear cold rolled round, cold rolled ribbed steel bar, hot rolled round, hot rolled ribbed steel bar.

10. Intelligent control: the machine adopts PLC control, touch screen operation, simple and reliable.

11. Low failure rate: due to the fine processing of parts, strict quality control, so after installation and debugging, under normal working conditions, can maintain trouble-free operation for a long time.

12. Advanced technology: this machine straightening, cutting and the world's advanced technology synchronization.



Advantages of Steel Wire Straightening And Cutting Machine


1. There is no error in the length of cut steel bar.
2. Double head pull type.
3. The next one meter of reinforcement is adjusted and pulled out.
4. Tungsten steel mould is used for construction wire.
5. The product wire adopts ball end die, and the steel bar will not damage the surface.

6. 3.0-6.0 mm is 90-110 m / min.
7. Within the industry, the calibration error is only ± 1 mm.
8. The operation of numerical control equipment is simple.
9. Stable and reliable quality,durable.
10. High efficiency and fast service



List of components of Steel Wire Straightening And Cutting Machine



No   Components name Quantity Function
1 Rotary plate type feeding rack 1pcs To put the coil wire
2 Protection frame 1pcs Protection
3 Main machine 1pcs To straight and cut the wire
4 Store wire frame 1pcs Finished straight bars are stored and bundled here
5 Control cabinet 1pcs Operate and control the machine
6 Spare parts and tool kit 1 pcs Provide straightening block, cutter, tool barrel and other wearing parts and adjusting machine tools

Technical Parameters of Steel Wire Straightening And Cutting Machine

Model DX-HS3-6 Wire diameter 3.0-6.0mm
Cut wire length error 1mm Cut wire length 1-6m
Straighten wire motor 7.5kw Straightening speed 100-130m per min
Cutting wire motor servo motor 3.0kw Cutting speed 100-130m per min
Manpower 1 person Machine dimension 7500*1100*1200mm
Required floor space 10*3m Store wire weight 1T



Applications of Steel Wire Straightening And Cutting Machine



The machine is widely used in high-speed railway, expressway, bridge tunnel, rail transit, underground pipe gallery, nuclear power, hydro power and other large-scale infrastructure construction and prefabricated buildings, steel processing and distribution center and other fields.



Photos of Steel Wire Straightening And Cutting Machine

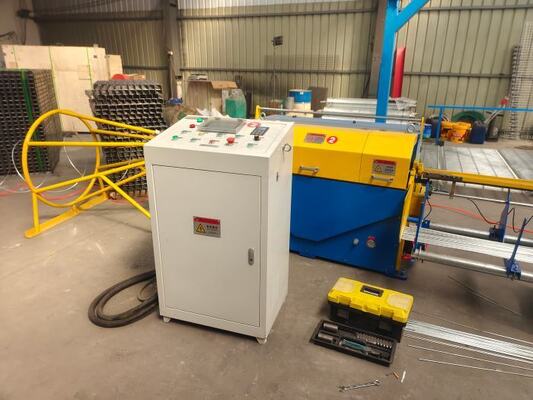

Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine 0

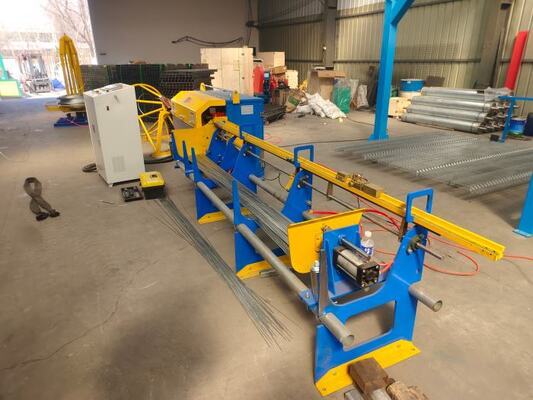

Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine 1
Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine 2
Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine 3
Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine 4
